Recently Clients from Europe consulted with GN Sales Managers for solution about Oil Sludge Treatment, mainly is for petroleum oil sludge. The Clients would like to recover clean oil from sludge, while discharge solids and water suitable for environment.

GN Company has developed Oil Sludge Treatment System, which can be widely used for Crude Oil Tank Sludge, Refinery Plant Waste Oil Sludge, and Drilling Waste Oil Sludge, etc.

The System is to add chemical (flocculants & emulsifier) into sludge, while heating the sludge to 60~70 C degree, then pumped the sludge into GN System for 3 Phase Separation (Oil Water Solids). The recycled water can be reused in the washing system, the oil can be sold to Refinery Company, and the solids, with oil content less than 2%, can be sent for biodegradation or thermal unit for final disposal.

Please find video about the System during operation from linkage as follow.
https://www.youtube.com/watch?v=hXrzm5J_k1A

There are two Big Advantages about GN Company as follow,

1. Besides supplying single unit of Centrifuge/Separator, GN Company takes more advantages of delivering customized One Stop Turnkey Solution for your project, including Design & Manufacturing. GN Company can also manufacture the related accessories, including Pump, Screw Conveyor, Chemical Dosing Unit, Slurry Tank, etc.

2. GN Company manages to design & manufacture the whole system on Skid or Containerization, which is easier for transportation by truck, and movable around different job sites.

Best & Regards,

Kevin Liu

Regional Manager
GN Separation & Conveying

Hebei GN Separation & Conveying Equipment Co.,Ltd
Tel:+86-316-5276988/9 Fax:+86-315-5276990
Mob (WhatsApp/Wechat): +86-15810901775
Email: kevin@gnseparation.com
Web: http://www.gnseparation.com
Address: No. 1 Zhongxun Road Dachang Chaobai River Industry Zone, Langfang, Hebei, China (Close to Beijing Int. Airport)

There is one set of drilling mud recycling system is under final assembling in GN Company‘s work plant, and would be ready for shipment soon.

This Drilling Mud Recycling System mainly includes equipment as follow,
Shale Shaker,
De-sander,

Pump, Pipeline, Accessories, etc.

The shale shaker is used to remove coarse solids, with size more than 100um.
The Desander is used to remove solids, with size 45~70um.

Working Procedure as below,
Feeding Drilling Mud to Shale Shaker through Mud Logging Tank, solids with size bigger than 100um would be shake out.
The drilling fluid passing through shaker screen would be pumped to Desander by Submersible Slurry Pump, solids with size 45~70um would be shake out.

The client also ordered one set of Jet Mud Mixer, including Mud Hopper, Mud Mixing Pump (centrifugal pump), for mixing the drilling fluid with chemical products, in order to improve its working performance.

GN Company is a professional manufacturer of Solids Control Equipment for 11 years, including Decanter Centrifuge, Shale Shaker, Shaker Screen, Desander/Desilter, Pump, etc.

GN Company supplies about 300 sets of decanter centrifuges in 2018, with 70% for International Market, including UK, Canada, Australia, USA, Russia, China, etc.

GN Company has two factories under operation, and a third one under manufacturing now, with more than 100, 000 square meters totally.

Welcome to contact GN Sales Managers for technical specifications and offers.

We would attend IFAT Exhibition in Germany, dated on May 4th~8th, 2020, with booth No. 104-b, Hall A1

Best & Regards,

Kevin Liu

Regional Manager
GN Separation & Conveying

Hebei GN Separation & Conveying Equipment Co.,Ltd
Tel:+86-316-5276988/9 Fax:+86-315-5276990
Mob(WhatsApp/Wechat): +86-15810901775
Email: kevin@gnseparation.com
Web: http://www.gnseparation.com
Address: No. 1 Zhongxun Road Dachang Chaobai River Industry Zone, Langfang, Hebei, China (Close to Beijing Int. Airport)

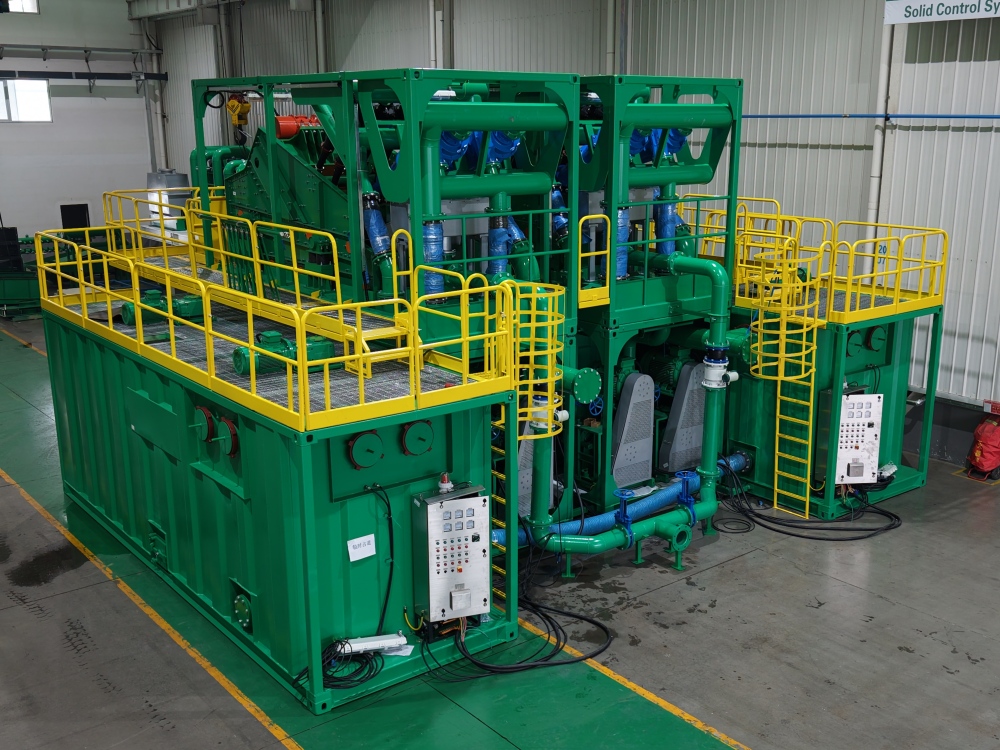

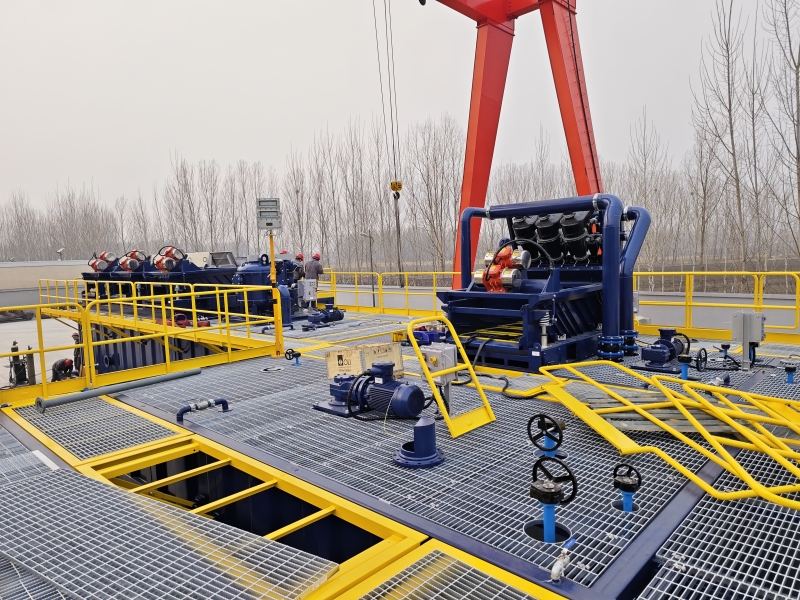

There is one Complete Solids Control System for Drilling Rig is under final assembling in GN’s work plant, and would be shipped to client’s work site soon.

The system includes 4 modules as below,

  1. Two Units of Shale Shaker (removing solids with size more than 100um)
  2. One Unit of De-sander (removing solids with size more than 45~70um)
  3. One Unit of De-silter (removing solids with size more than 20~45um)
  4. One Unit of Decanter Centrifuge (removing solids with size less than 20um)

2019.09.18 Mud Circulation System

Drilling Fluid Solids Control System Working Procedure as below,

The drilling mud firstly pumped to the Mud Gas Separator, if the drilling fluid has Toxic flammable gas, for removing the toxic gas.

Secondly, The drilling mud would be pumped to shale shaker, for removing coarse particle, with size more than 100um.

The liquid and fine solids would pass the shaker screen, and flow into storage tank under the shale shaker.

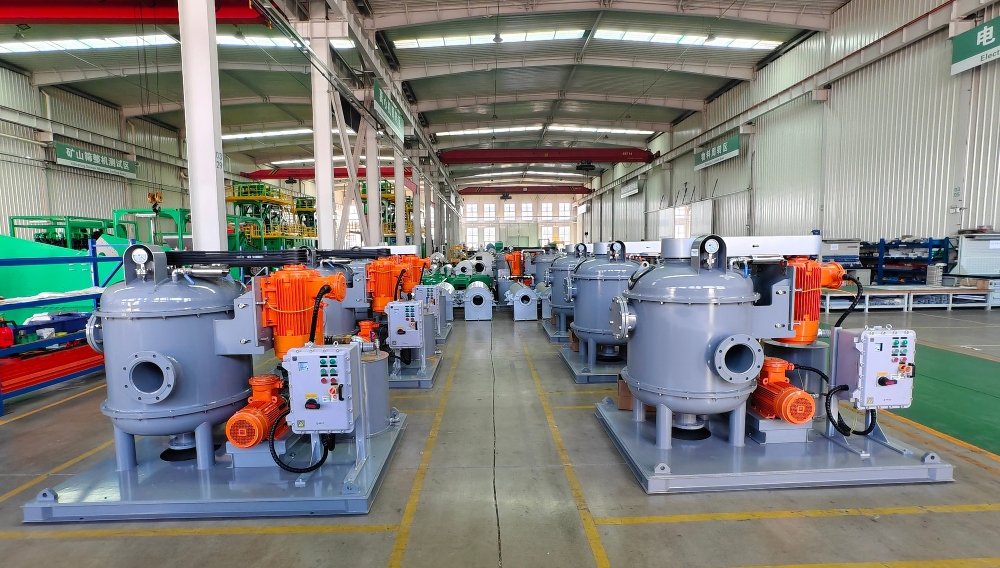

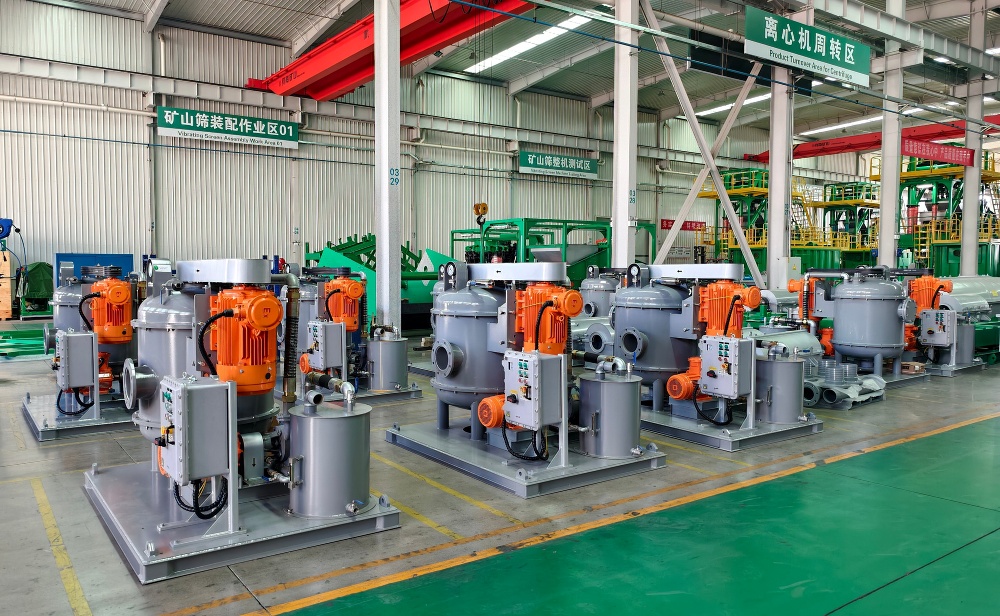

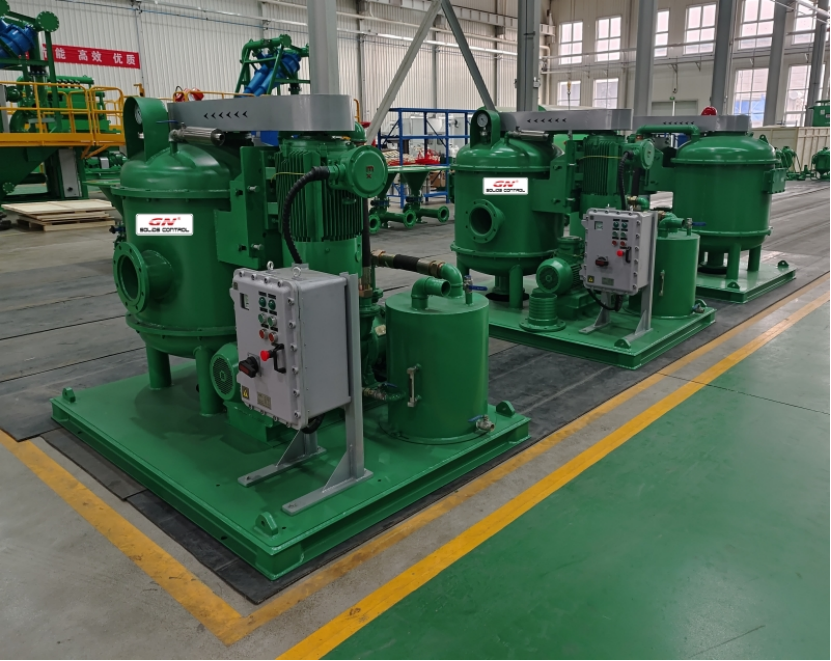

Thirdly, the drilling fluid would be pumped to Vacuum Degasser, for removing air from drilling fluid, in order to increase separation efficency for equipment after.

Then the drilling fluid would be pumped to Sand Removal Cyclone, for removing solids 45~70um, then Desilting Cyclone, for removing solids 20~45um.

The drilling fluid is clean after treated by Mud Cleaner, and if the project is necessary to remove fine solids, less than 20um, the drilling fluid can be pumped to Decanter Centrifuge for further solid separation.

2019.09.18 Drilling Mud System

Welcome to contact GN Company for more technical specifications & working videos about our equipment in working sites.

We would attend IFAT Exhibition in Germany, dated on May 4th~8th, 2020, with booth No. 104-b, Hall A1

Best & Regards,

Kevin Liu

Regional Manager
GN Separation & Conveying

Hebei GN Separation & Conveying Equipment Co.,Ltd
Tel:+86-316-5276988/9 Fax:+86-315-5276990
Mob(WhatsApp/Wechat): +86-15810901775
Email: kevin@gnseparation.com
Web: http://www.gnseparation.com
Address: No. 1 Zhongxun Road Dachang Chaobai River Industry Zone, Langfang, Hebei, China (Close to Beijing Int. Airport)

GN Company prepared the final package for 2 sets of Construction Slurry Dewatering System for an American client. This system is used to separate Solid Liquid, and recover clean water for reuse or suitable for discharging.

The system includes 4 modules as below,

  1. Waste Collecting and Washing Module
  2. Screening Module
  3. Desilter Module
  4. Centrifuge Module

Detailed Explanation as below,

  1. Waste Collecting and Washing Module
    The waste slurry would be discharged onto a coarse screen for large size trash separation. The liquid with fine particles is collected in the tank under the coarse screen.
  2. Screen Module
    The liquid is pumped to Mine Shaker, to remove coarse particles. Then the liquid would be pumped to GN Shale Shaker for removing fine solids, with particle size about 100 um.
  3. Desilter Module
    GN desilter with hydro cyclone manifold is fixed on a washing tank for further separation of the fine solids, with particle size about 20~45 um. The under shaker of the desilter is same model with GN drying shaker for easy maintenance. The hydrocyclone is using centrifugal force and gravity to separate the liquid and solids. The slurry is pumped into the cyclone with high speed for effectively separation process.
  4. Centrifuge Module

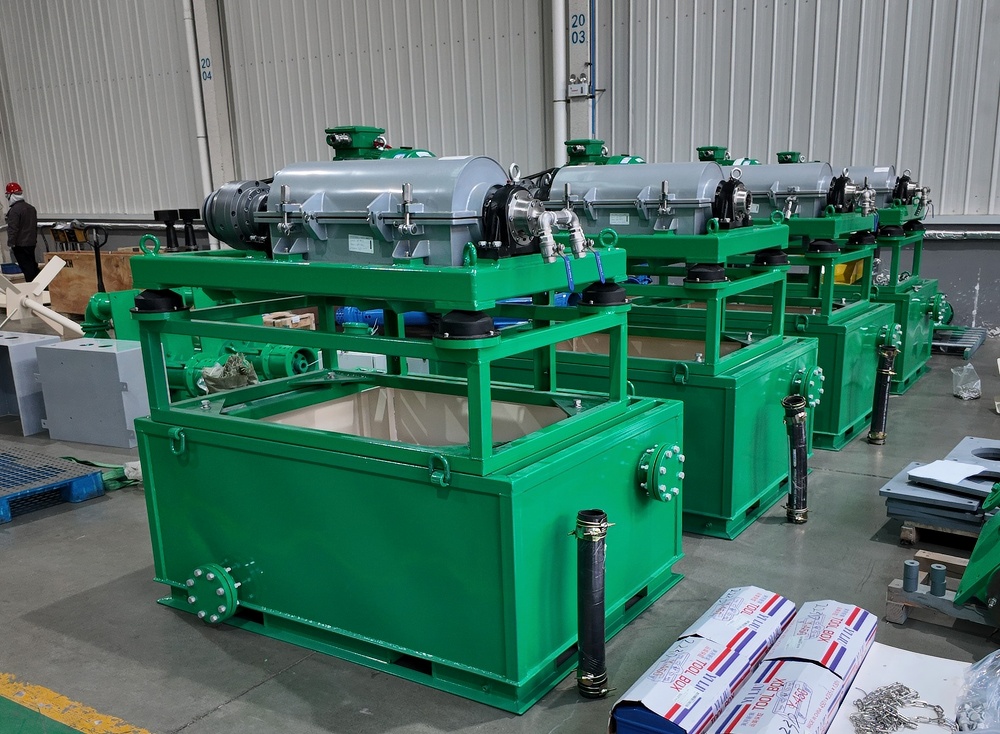

    A decanter centrifuge would be used to remove the ultra-fine solids in the slurry, with particle size about 10 um. The liquid discharged from decanter can be reused for this system.
    A chemical dosing system can be used to help decanter centrifuge to increase efficiency of separation.

Welcome to contact GN Company for more technical specifications & working video.

We would attend IFAT Exhibition in Germany, dated on May 4th~8th, 2020, with booth No. 104-b, Hall A1

Best & Regards,

Kevin Liu

Regional Manager
GN Separation & Conveying

Hebei GN Separation & Conveying Equipment Co.,Ltd
Tel:+86-316-5276988/9 Fax:+86-315-5276990
Mob(WhatsApp/Wechat): +86-15810901775
Email: kevin@gnseparation.com
Web: http://www.gnseparation.com
Address: No. 1 Zhongxun Road Dachang Chaobai River Industry Zone, Langfang, Hebei, China (Close to Beijing Int. Airport)

There is one company from Asia purchasing a complete set of Oil Sludge Treatment System, with Model GNOST-50A, capacity 5m3/h, from GN Company. The system can be used for Oil Sludge Treatment, which from Refinery Plant, Oil Tank, Drilling Project, etc.

GN Oil Sludge Treatment System can reach the achievement of discharging Oil, Water, and Solid separately, and result as follow,
Solid & Water Content in Oil less than 3%,
Oil Content in Solid less than 2%,
Oil Content in Water is about 500~1000 PPM. And we can supply Micro bubble Water Processor, which can lower oil content in water to 50~100 PPM.

The system include 5 Modules as below,

  1. Vacuum Transferring Pump Module
    Transferring Oil sludge into our system by sludge Pump
  2. Pre-mixing and Heating Module
    Mixing oil sludge with water and chemical, for making Solids Content less than 20%, which is easier for procedure.
  3. Screening Shaker Module
    Removing large particle of solids (about 100um) by Shale Shaker
  4. Centrifuge Separation Module
    Firstly separating fine solids (less than 10um) from liquid by Decanter Centrifuge (2 phase separation)
    Secondly separating Oil, Water and little ultra-fine Solid by Disc Centrifuge (3 phase separation)
    (Both decanter centrifuge and Disc centrifuge works based on Centrifugal Force, and Disc centrifuge works at a much higher speed, which means bigger Centrifugal Force than Decanter Centrifuge, so that oil and water can be separated)

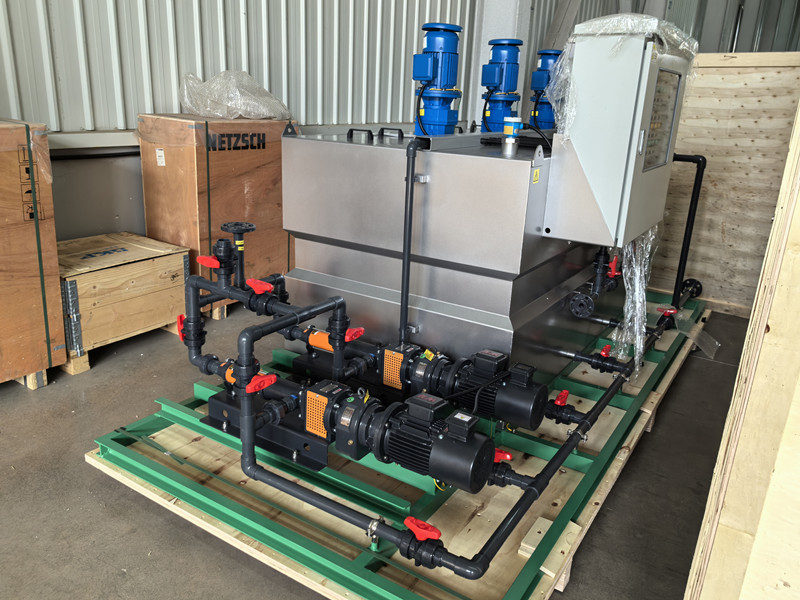

  5. Chemical Dosing System

GN Company is a professional manufacturer of Wastewater & Oil Sludge Treatment Equipment for 11 years, and GN turnkey solution system includes equipment as follow, Decanter Centrifuge, Disc Centrifuge, Oil Water Separator, Sludge/Solids Vacuum Pump, Screw Conveyor, etc.
GN Company has two factories under operation, and a third factory under manufacturing now, with about 100,000 square meters totally.

Welcome to contact GN Company, we would offer working videos about our Oil Sludge Treatment System in job site.

GN Company accepts that clients to do Trial Test with your oil sludge in our work plant, for checking system working performance actually.
